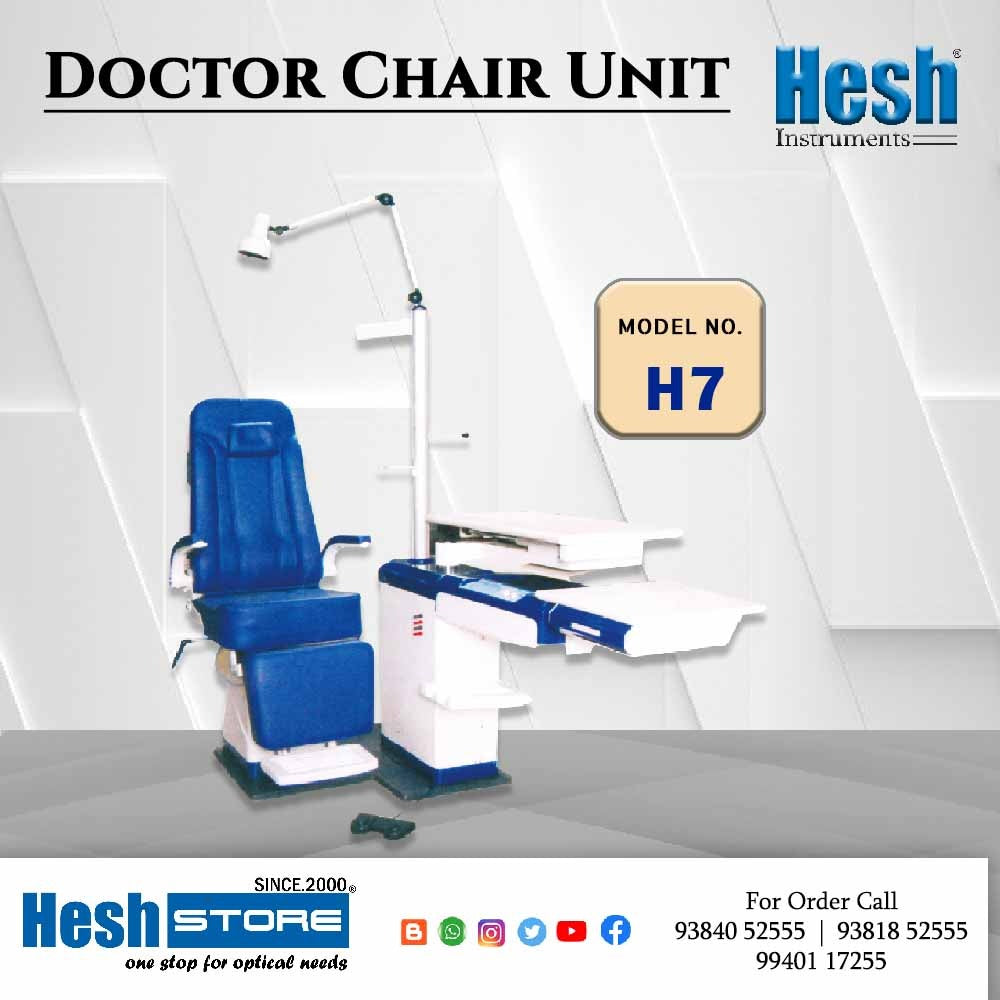

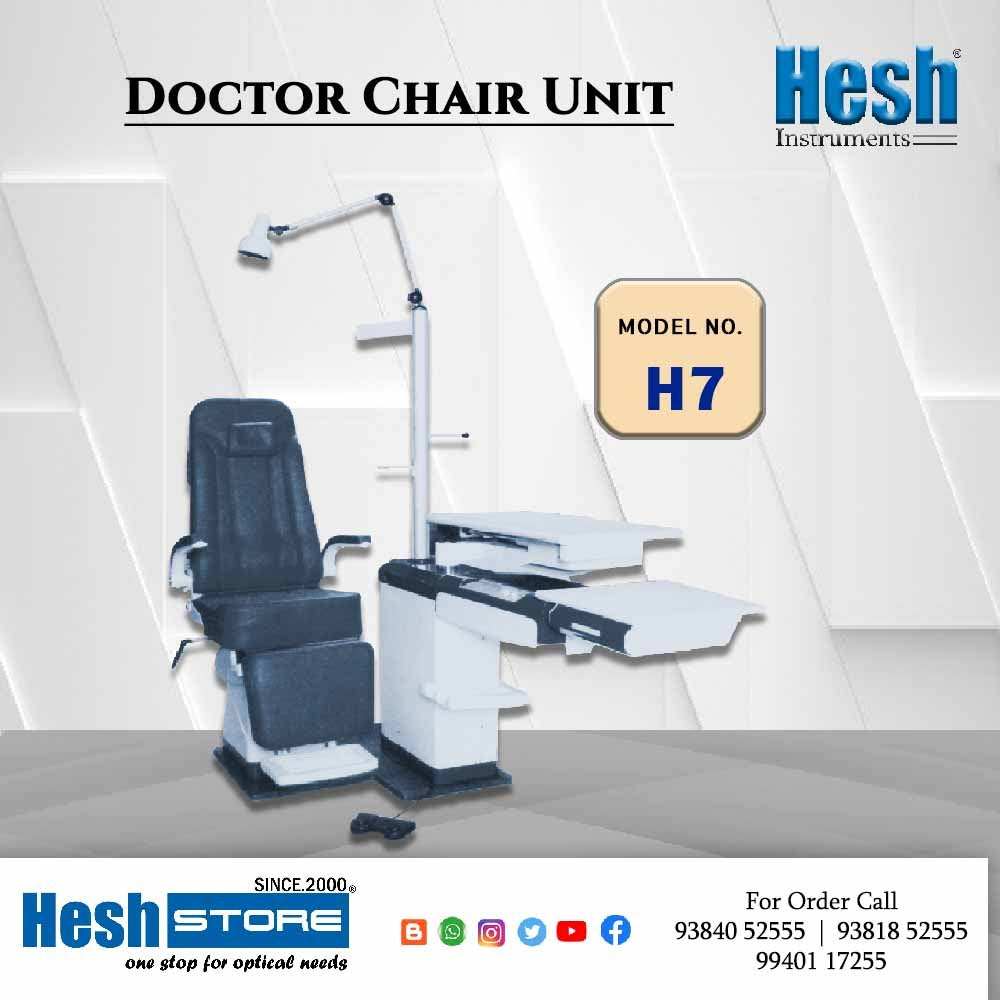

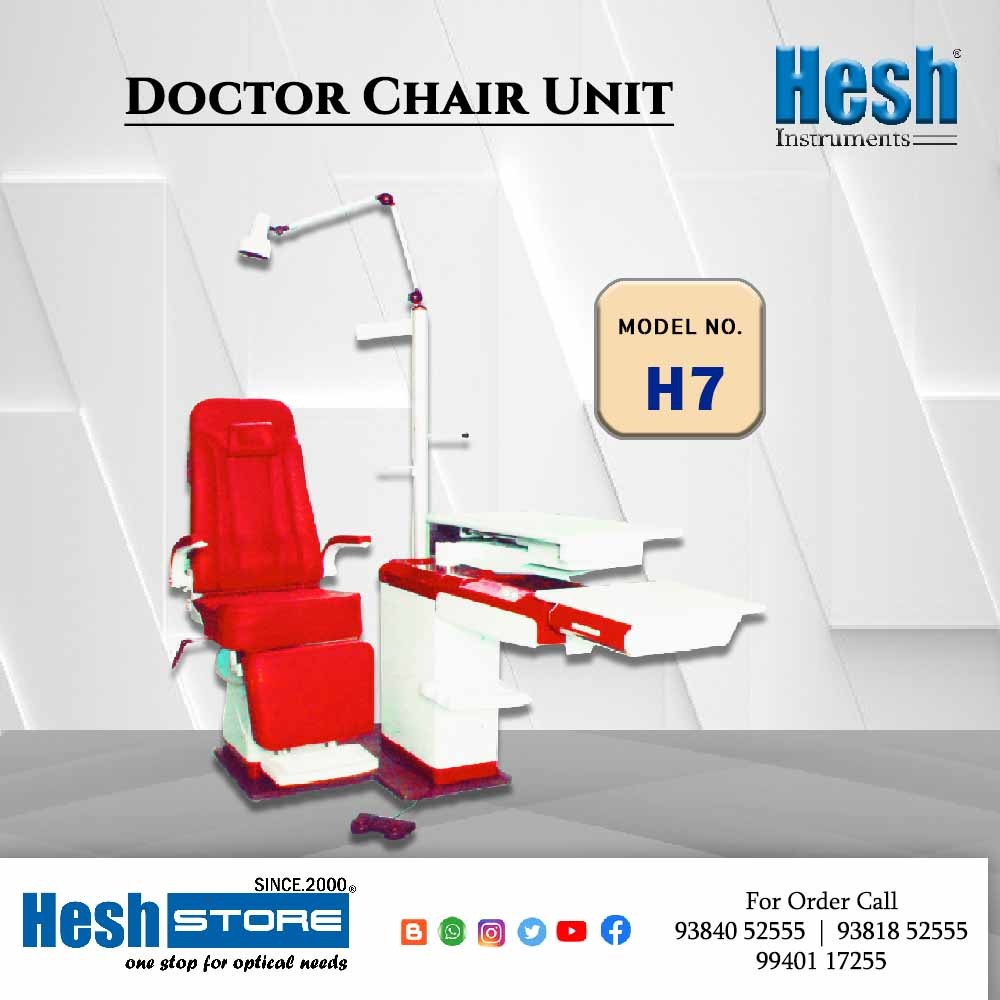

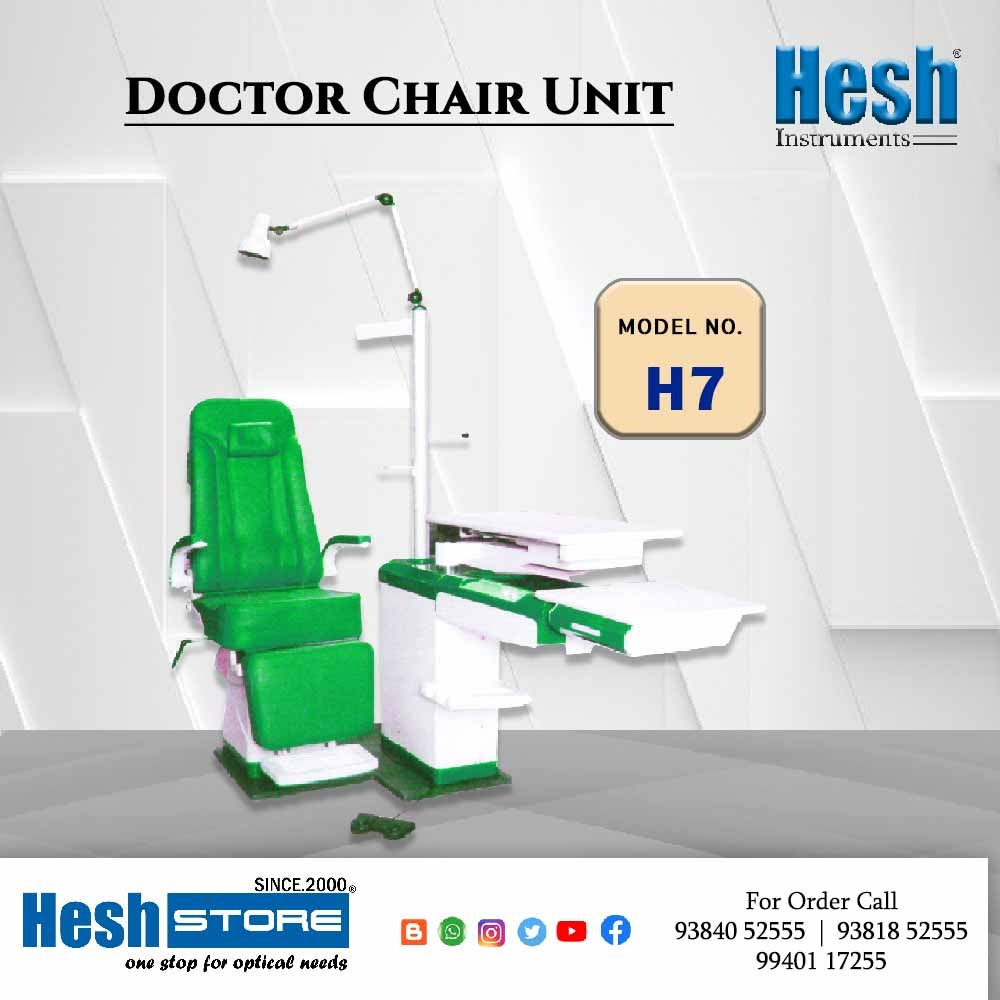

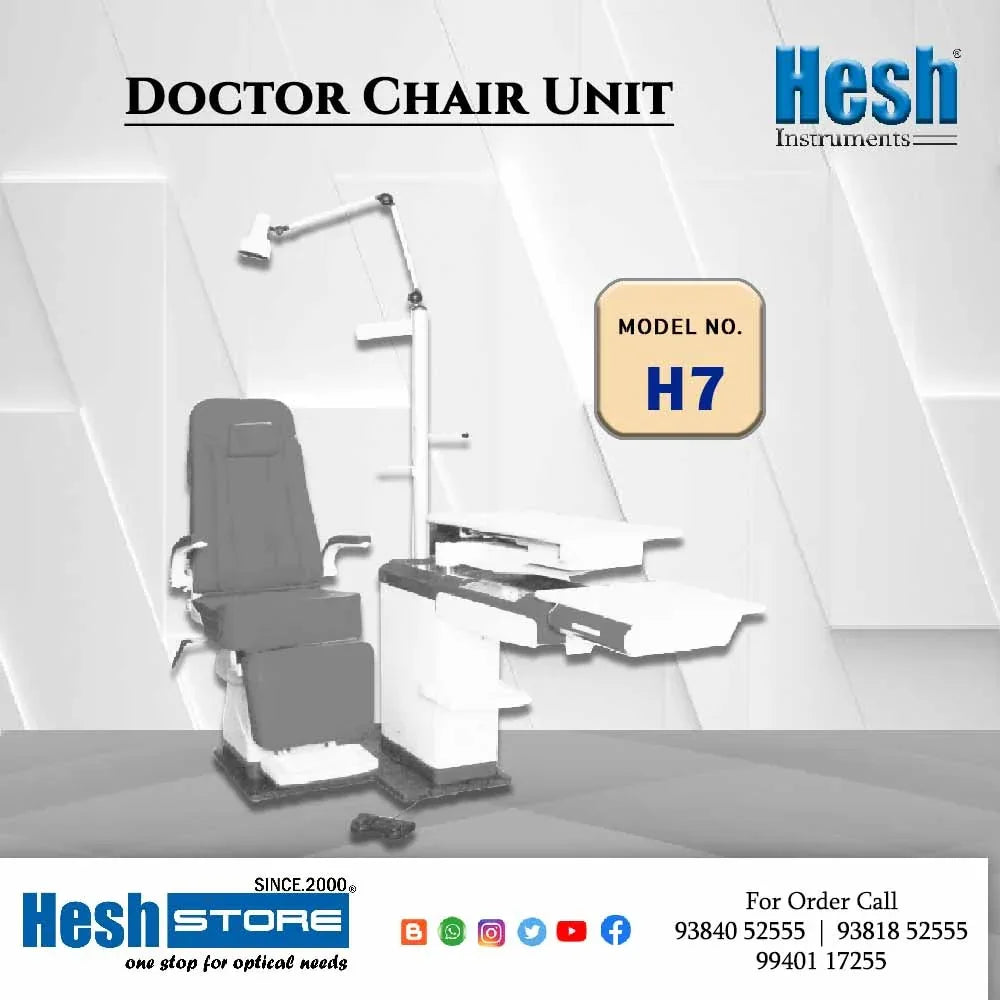

Chair Unit - H7 Doctor

DOCTOR CHAIR UNIT

Chair Specifications :-

• DC MOTOR - UP / DOWN ~ BACK / FORWARD 24v MAX LOAD 180 KG
• ELEVATION STROKE - 190 mm
• SEAT ROTATION - 0 TO 175 DEGREE
• BACK REST RECLINATION - NIL
• SEAT HEIGHT - MINIMUM 530 mm to MAXIMUM 720 MM
• ARM REST - ALUMINIUM CASTING WITH CUSION
• INPUT TENSION - 220v, 50 Hz AC
• FOOT SWITCH - UP / DOWN FOR CHAIR ONLY
• POWER CONSUMPTION - 660 VA
• NET WEIGHT - 98 KG
• VARIENTS - RIGHT SIDED /LEFT SIDED OPTION

Unit Specifications :-

• SLIDING TABLE STROKE - 345 mm
• POWER SUPPLY RANGE - SELECTION OPTION 0, 1.5, 2.5, 3, 4.5, 6, 7.5, , 9 & 12v for table mounted equipment

• LOADED WEIGHT - 25 kg ON RIGHT AND LEFT SIDE
• HEIGHT ADJUSTMENT - FIXED
• SLIDING TABLE ROTATION - 0 to 90 DEGREE
• TRAIL LENS TRAY - OPEN TRAY
• SLIDING TABLE TOP SIZE - 380mm X 790 mm
• TRIAL LENS TRAY DRAWER SIZE - 50 mm X 345 X 15mm
• LIGHT POLE LENGHT - 1130mm X 42mm DIAMETER
• SIDE TABLE TOP - 425mm X 380mm
• POWER SUPPLY RANGE FOR RETINOSCOPE / OPTHALMOSCOPE - 0, 1.5, 2.5, 3, 4.5, 5, 6, 7, 7.5, 9 & 12v from 2 amp TRANSFORMER
• FUSE - SLOW BLOW TYPE
• POWER SOURCE AC - 220v OR 110v
• NET WEIGHT - 152 kg
• REQUIRED SPACE - ERECT POSITION 52" X 40" FULLY RECLINED POSITION 56" X 44

HIGHLIGHT :-

• DOCTOR STOOL INCLUDED
• Tray For Trail Set
• Chair Up / Down
• One Instrument Panel
